| 型號 |
線徑 mm2 |
電流 A |
電壓 V |

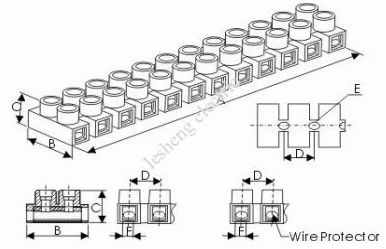

螺絲 | 尺寸mm | 每包 | |||||
| A | B | C | D | E | F | ||||||
| PA8 | 1.5 | 17.5 | 450 | M2.6X5 | 96.00 | 16.3 | 17.6 | 8.0 | 2.9 | 2.8 | 50pcs |
| PA8 DS | 1.5 | 17.5 | 450 | M2.6X5 | 96.00 | 16.3 | 17.6 | 8.0 | 2.9 | 2.8 | 50pcs |
| PA10 | 2.5 | 24 | 450 | M3X6 | 117.5 | 20.2 | 20.1 | 10.0 | 3.6 | 3.2 | 50pcs |
| PA10 DS | 2.5 | 24 | 450 | M3X6 | 117.5 | 20.2 | 20.1 | 10.0 | 3.6 | 3.2 | 50pcs |
| PA12 | 6 | 41 | 500 | M3.5X7 | 140.7 | 23.8 | 19.0 | 12.0 | 3.9 | 3.9 | 50pcs |
| PA12 DS | 6 | 41 | 500 | M3.5X7 | 140.7 | 23.8 | 19.0 | 12.0 | 3.9 | 3.9 | 50pcs |
| PA14 | 10 | 57 | 500 | M4X9 | 158.0 | 25.6 | 25.2 | 13.5 | 4.4 | 4.4 | 50pcs |
| PA14 DS | 10 | 57 | 500 | M4X9 | 158.0 | 25.6 | 25.2 | 13.5 | 4.4 | 4.4 | 50pcs |
